FACTR 2: Learning External Force Sensing for Commodity Robot Arms Improves Policy Learning

Steven Oh*1,2 Jason Jingzhou Liu*1 Tony Tao*1
Philip Han1 Kenneth Shaw1 Satoshi Funabashi2
Ruslan Salakhutdinov1 Deepak Pathak1
1 2

* Equal contribution

Paper

Abstract

Contact-rich manipulation requires force sensitivity, but many robot arms lack dedicated force sensors due to their high cost. We present Neural External Torque Estimation (NEXT), a data-driven method that estimates external joint torques without needing any dedicated force sensors. NEXT trains in 1 minute from only 10 minutes of free-motion data, yet achieves estimates comparable to dedicated joint-torque sensors. NEXT enables force-feedback teleoperation on low-cost arms and improves policy learning through Force-Informed Re-Sampling Training (FIRST), which re-samples the training batch distribution to emphasize critical task phases during behavior cloning. Across five long-horizon tasks, FIRST outperforms prior force-aware policies by over 17% in task progress. Together, NEXT and FIRST bring force-aware teleoperation and policy learning to off-the-shelf robots without additional sensing hardware.

Result Highlight

NEXT: Neural External Torque

Estimates external joint torque without dedicated force sensors.

FIRST: Force-Informed Re-Sampling Training

Re-samples the training batch to prioritize critical task phases.

NEXT: Neural External Torque Estimation

Data-driven external joint torque estimation without dedicated force-torque sensors for any arm.

NEXT produces high-quality torque estimates on low-cost arms.

More to come

Contact

Free Motion

NEXT gives clean external contact signal, enabling force feedback teleoperation.

NEXT stays near zero torque in free motion.

NEXT matches factory-level joint-torque sensors.

We compare NEXT with Franka's dedicated joint torque sensors. NEXT closely matches Franka's factory external torque estimate.

Contact

Free Motion

NEXT matches external torque estimate from dedicated force sensors.

NEXT stays near zero in free space with less noise.

NEXT only needs 10 min of data and 1 min of training to set up.

Step 1

Data Collection and Training

We collect only 10 minutes of free-space data and train an LSTM to predict measured joint torque in free-space from joint states.

Step 2

Deploy for External Joint Torque

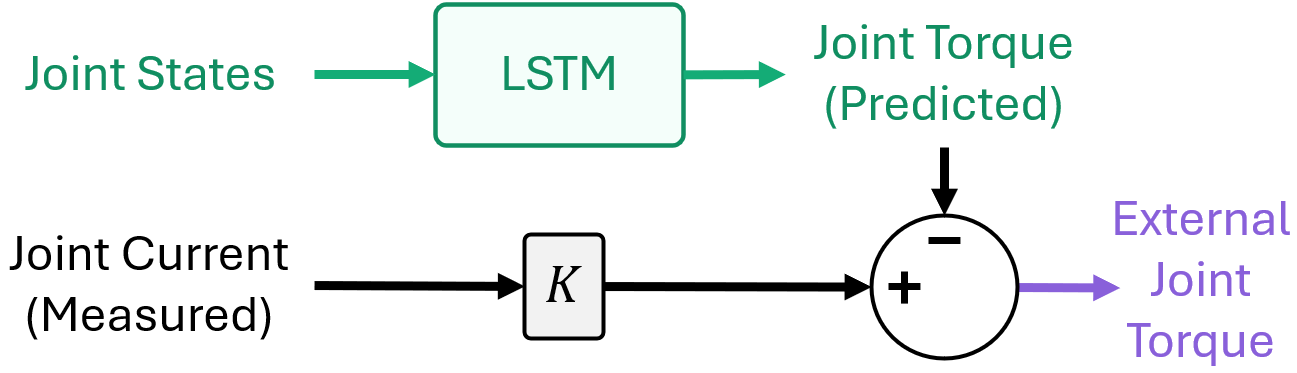

NEXT inverse dynamics deployment diagram.

At deployment, NEXT subtracts the predicted free-space torque from measured motor torque (derived from scaling joint current by the torque constant K), yielding external torque.

No external dedicated force sensors are required in data collection nor deployment!

FIRST: Force-Informed Re-Sampling Training

Use estimated external torque to up-sample pre-contact and contact data during behavior cloning.

Contact Phase Labeling

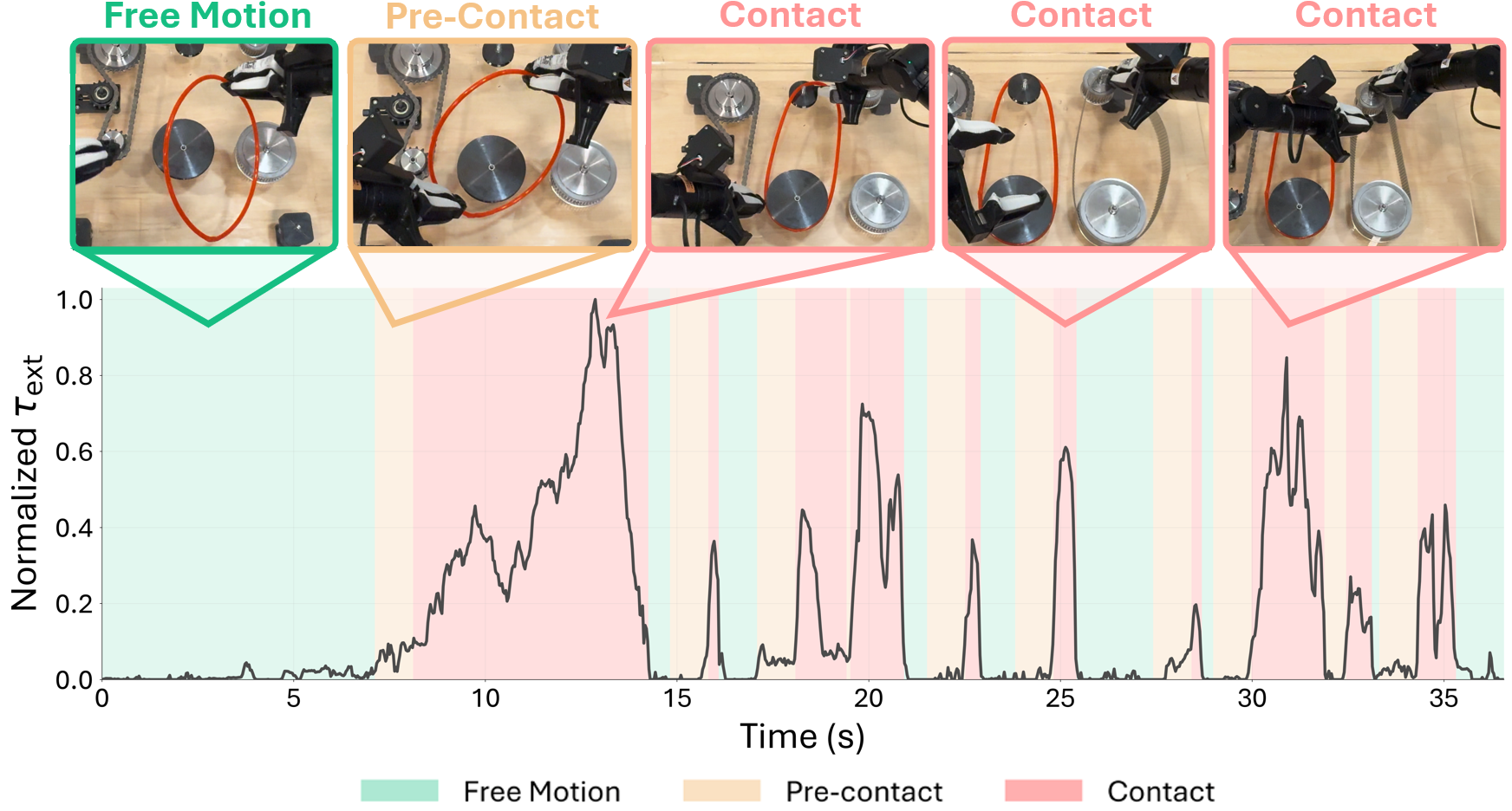

External Torque signal from NEXT is used to segment demonstrations into free-space, pre-contact, and contact phases.

Segment using external torque produced by NEXT

Up-Sample Contact-Relevant Data

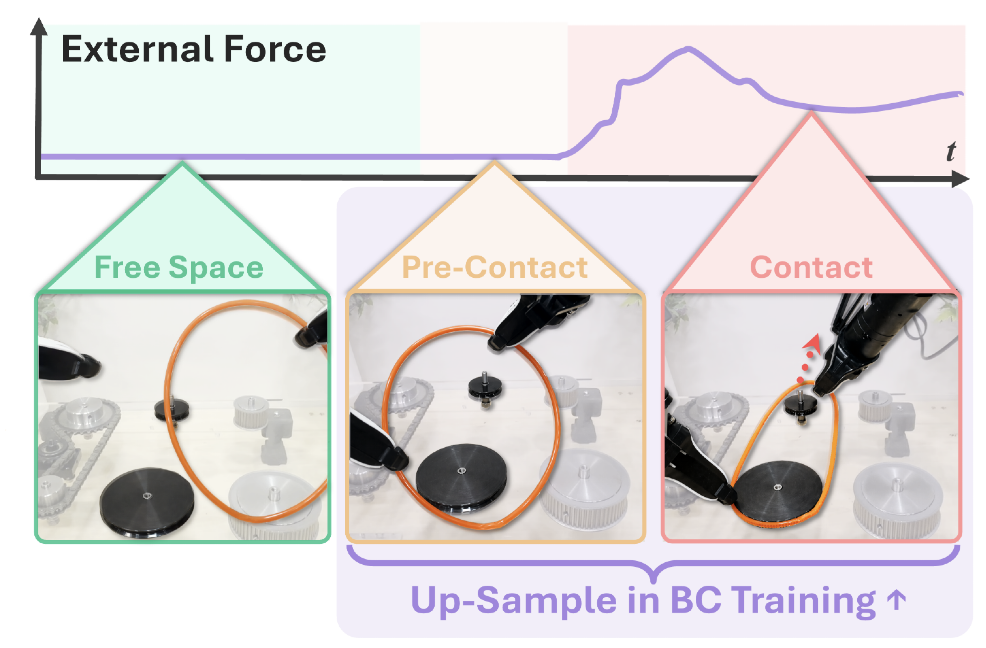

Contact labeling visualization.

Label free-space, pre-contact, and contact phases.

Up-sample pre-contact and contact data.

Autonomous Policy Rollout (1x Speed)

Task 01

NIST Belt Assembly

Task 02

Cap Screwing

Task 03

NIST Insertion

Task 04

Tool Clean Up

Task 05

LEGO Assembly

Long-Horizon NIST Board Task (Insertion + Belt Assembly)

Robustness

Re-sampling pre-contact and contact data during training improves robustness to task perturbations.

NIST Belt Assembly
Tool Insertion
Pill Pick Up

Recovery Behavior

Re-sampling pre-contact and contact data during training encourages more recovery behavior than the baseline.

Belt Alignment Recovery
Belt Fitting Recovery
Misaligned Cap Recovery

Vision + Torque Policy without FIRST

Without FIRST, the baseline fails more often in critical pre-contact or contact phases of the task.

NIST Insertion + Belt

Fails to align the belt with the pulley.

Cap Screwing

Over-rotates after the cap is tightened.

Tool Clean Up

Fails to align and insert the tool.

Acknowledgements

We thank Andrew Wang, Yulong Li, Koki Yamane, Yangcen Liu, Yongliang Wang, Ritvik Singh, Zheyuan Hu, Adam Kan, and Arthur Allshire for valuable discussions and feedback on the paper. We also thank Zheyuan Hu and members of the AIRe Lab for generously providing access to their YAM arms for this project. This work was supported in part by AFOSR FA9550-23-1-0747, ONR MURI N00014-22-1-2773 and ONR MURI N00014-24-1-2748.

BibTeX

@article{oh2026factr2,
  title   = {FACTR 2: Learning Force Sensing and Force-Aware Policies for Any Robot Arm},
  author  = {Oh, Steven and Liu, Jason Jingzhou and Tao, Tony and Han, Philip and Shaw, Kenneth and Funabashi, Satoshi and Salakhutdinov, Ruslan and Pathak, Deepak},
  year    = {2026}
}
